Product application

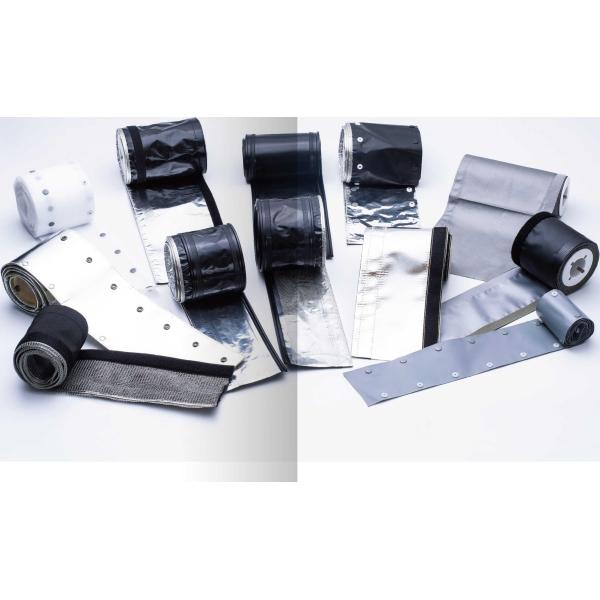

The shielded zipper sleeve (ZPCA) is made of aluminum foil PVC, tinned copper braided tape, and plastic zipper. This product has high sealing, flame retardant properties. Products are widely used in semiconductor equipment, medical equipment, laser equipment and other industries with high shielding requirements, playing a role in preventing electromagnetic wave interference.
Material: Aluminum foil +PVC+POM+Tlnned wire
Thickness: 0.22mm (Aluminum foil PVC)
Color: Black
Usage: Use the JP-TUBING tool
Functions: Anti-electromagnetic wave interference, high shielding performance, high sealing performance
Available Temperature: -15X^-+60^C
1,PVC 2,Shielding material 3, Con^x zipper 4,Concag zipper Tin 5,copper wire
| specification |
| Model | width(mm) | beam diameter(mm) | length | packaging method |
| LPCM-10 | 71 | 10 | | |
| LPCM-15 | 91 | 15 | | |
| LPCM-20 | 105 | 20 | | |
| LPCM-25 | 115 | 25 | | |
| LPCM-30 | 130 | 30 | 25M | Paper box |
| LPCM-40 | 160 | 40 | | |
| LPCM-50 | 190 | 50 | | |
| LPCM-70 | 255 | 70 | | |
| LPCM-100 | 348 | 100 | | |
How to use shielding sleeve
1. Corrosion resistance, long service life, can be used in wet saline alkali zone.
2, flame retardant, good heat resistance, can be used for a long time at a high temperature of 130 degrees without deformation, in case of fire does not burn.
3. High strength and stiffness. Used in the lane of the road direct burial without adding a concrete protective layer, can roll fast cable project construction progress.
4. The pipe is flexible and can resist the damage caused by external pressure and foundation settlement.
5. It has good anti-external signal interference performance.
6. The inner wall is smooth and does not scratch the cable. The design adopts the socket connection method to facilitate installation and connection. The rubber sealing ring seal at the joint is not only suitable for thermal expansion and contraction, but also prevents the entry of mud and sand.
Wenzhou Qiupu Electric Co., Ltd. was founded in 2006, Specializing in the development and production of cable protection and electromagnetic shielding. At present, the products are shielded button casing, shielded adhesive casing, shielded zipper casing, high temperature resistant casing, acid and alkali proof casing, anti-static casing, wear-resistant casing, industrial robot casing, button casing, adhesive casing, zipper casing and self-winding casing. For military industry, semiconductor equipment, high-speed rail, power equipment, automation control, medical equipment, welding equipment, elevator and other industries to provide high-quality cable protection and electromagnetic shielding solutions. Products have passed ISO9001, ROHS, VTM-0, REACH and other certifications.
